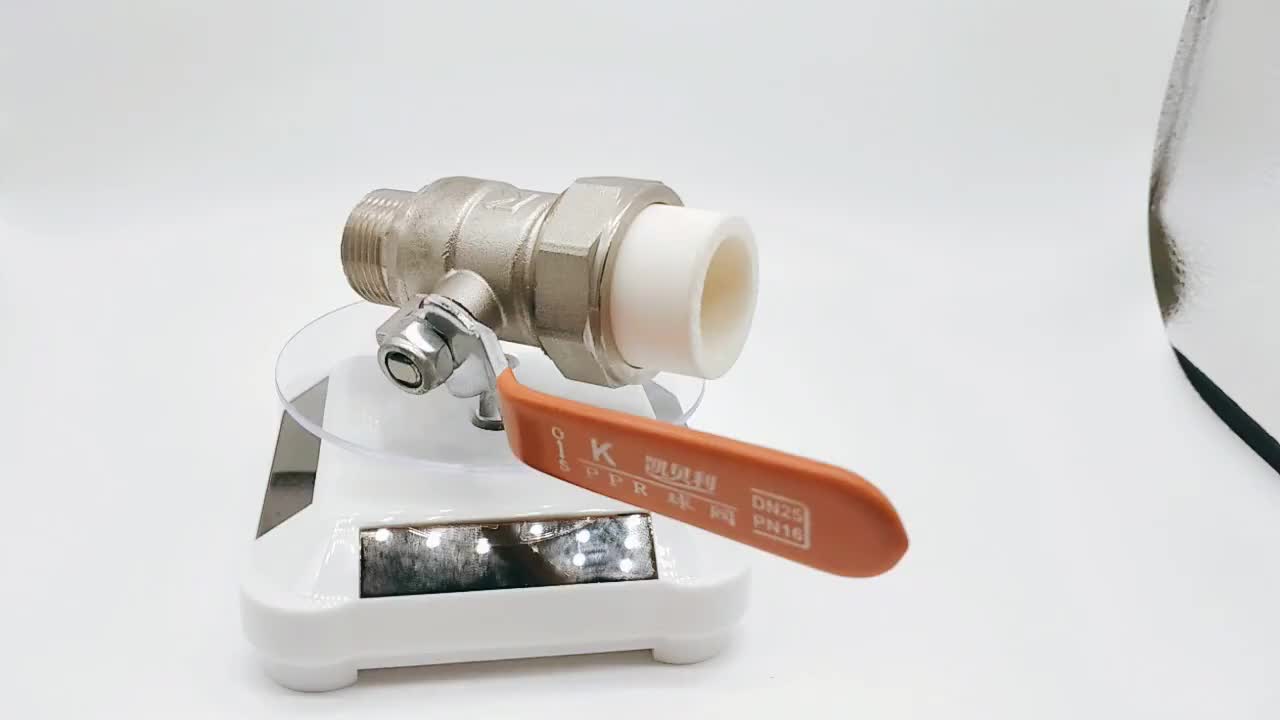

1/2 INCH Brass Ball Valve True Union Forged Male Thread PPR

About 1/2 INCH Brass Ball Valve True Union Forged Male Thread PPR

Product name

brass ball valve

Service

7*24h

media

Water

Connection Size

1/2 in, 3/4 in, 1 in, 2 in

customized support

OEM, ODM, OBM

Sealing Material

PPR

temperature of media

Normal Temperature

Working pressure

1.6Mpa

Working Temperature

20 -120

Working medium

Gas Water Oil

Packing

Carton

Thread

NPT G BSP

Brand Name

kaibeili or OEM

Place of Origin

Zhejiang, China

Application

Home Kitchen

power

Manual

Model Number

QF-1660

Surface

Nickel Plating

Certificate

ISO9001

Port Size

DN15"X20 ,DN20"X25 ,DN25"X32,DN32*40,DN40*50

MOQ

100 Piece

Structure

Ball

Operating Temp. Range

Medium Temperature

Product Description

1. Nominal pressure: 1.6Mpa
2. Working medium: hot and cold water
3. Working temperature: -20℃≤T≤100℃

4. Standard: Test pressure meets ISO5208 standard
Pipe thread conforms to ISO228 standard
5. Certification: ISO9001

6.Note: PPR. PB. PERT hot melt heads are interchangeable

Product Name	DN15-DN25 presser 1.6Mpa brass External thread PPR ball valve
Material	Brass 59-1 57-3
Color	Nickel plating
Standard	ISO9001 Test pressure: ISO5208 Pipe thread: ISO228
Grade	QF-1660
Thread	external thread Live connection PPR

Products Dimensions

DN	SIZE	H	L	B	D
15	1/2"X20	35	74	13	86
20	3/4"X25	45	90	17	92
25	1"X32	52	100	21	105

Products Advantage

Ball valve

1.Small fluid resistance
2.The closing piece can withstand the high pressure difference at the time of closing.
3.Floating ball makes the opening and closing more flexible.
4.Compact structure, small size, saving installation space.

Packing & Delivery

Quantity (pieces)	≤50000	>50000
Est. Time (Days)	30	To be negotiated

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Certifications

In 2009, Kaibelli introduced advanced Spike spectrum analyzers from Germany for material analysis of raw materials and accessories, and purchased internationally advanced valves, nozzles, hoses, life, flow, hot and cold, and pull Extruded melt index and blasting test machine with 30 standardizers.

Cooperation Case

Beijing Victoria Garden

Xi'an Chang'an University

Shanghai Maritime Building

FAQ

Q: Can you give me a disount?

A: As you know, we are manufactory, so please believe us our price is competitive.

If the quantity is big, we can consider give you a discount.

Q: How about your capacity?

A: As you know, we have 70 employees and have 30 CNC machine tools for quality inspection. So please believe that we can deliver the valve according to your order.
