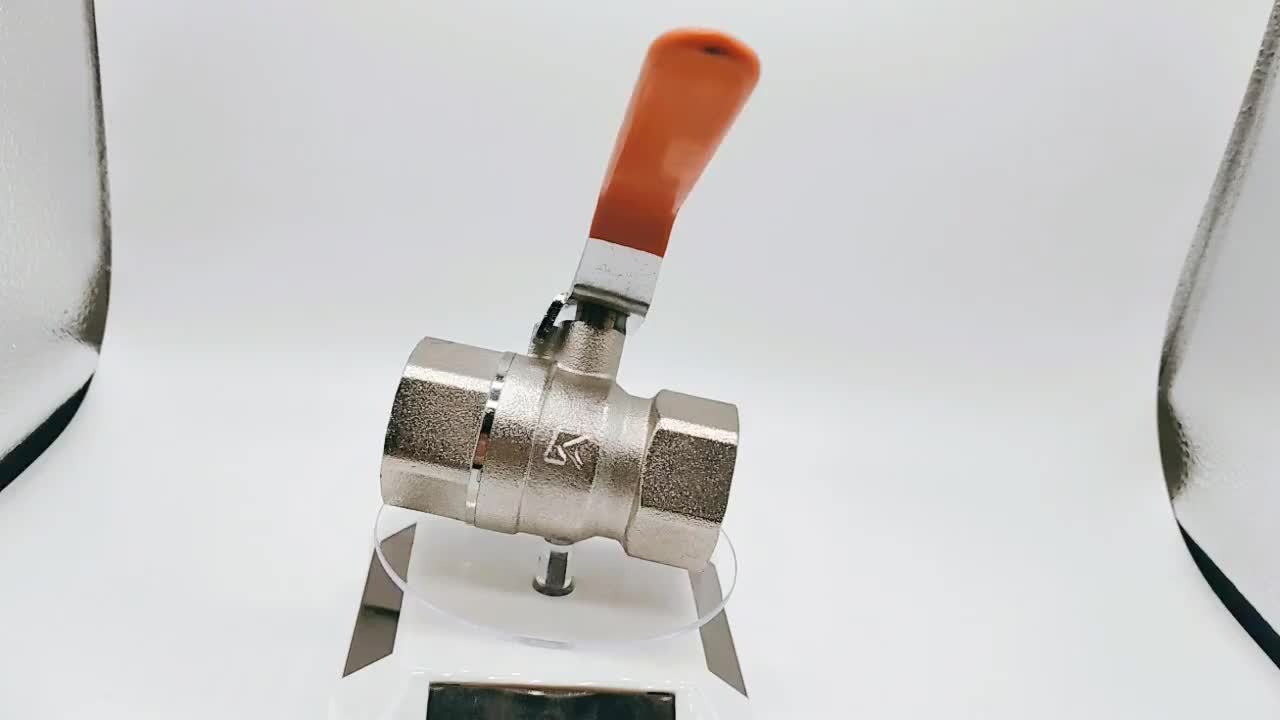

Home Hydraulic 1inch Inline One Way Handle Female Thread Nickel Plated Water Control Flow Copper Ball Valve

USD $1.50 - 1.98 /Pieces

Min. order: --

Product Info

Category: Industrial Valves

Factory

Zhejiang Kaibeili Valve Co. Ltd.

TaiZhou, Zhejiang, China

Employees

51-100

Factory Size

5,000-10,000 ㎡

Year Established

2007

Send Inquiry

Sale Product

HOT

China Two Ways Manual Ptfe Brass 1inch Angle Male Thread Flow Control Water Union Ball Valve With butterfly Handle

$1.50 - 20.00

Brass Ball Valve With Filter Female Thread Hot Sale Popular Design Water Flow Control Ball Valve

$4.40 - 8.11

Non-return One Way With Flap2 Inch Hydraulic Vertical Waster Brass Check Valve

$1.00 - 10.00

Hydraulic Flow Control HVAC Systems & Parts Wireless Heating Thermostat Brass Angle Aluminum Plastic Pipe Smart Radiator Valve

$1.73 - 2.16

600 Wog Female Screwed Water 1/2 Inch DN15-DN50 Pressure 1.6Mpa Brass Paint Y Filter

$1.29 - 12.59

About Home Hydraulic 1inch Inline One Way Handle Female Thread Nickel Plated Water Control Flow Copper Ball Valve

Product name

BALL VALVE

Color

White

Service

7*24 Hours

media

Water

customized support

OEM, ODM, OBM

temperature of media

Normal Temperature

Working medium

Gas Water Oil

Thread

NPT G BSP

Brand Name

kaibeili or OEM

Place of Origin

Zhejiang, China

Application

Home Kitchen

Usage

Water Control

power

Manual

Model Number

QF-1700

Surface

Nickel Plating

Certificate

ISO9001

Port Size

1/2" 3/4" 1"

Size

Standard Size

MOQ

1 Piece

Structure

Ball

Product Description

1. Nominal pressure: 1.6Mpa
2. Working medium: hot and cold water
3. Working temperature: -20℃≤T≤100℃

4. Standard: Test pressure meets ISO5208 standard
Pipe thread conforms to ISO228 standard
5. Certification: ISO9001

Product Name	DN15-DN25 presser 1.6Mpa brass internal thread ball valve
Material	Brass 59-1 57-3
Color	Nickel plating
Standard	ISO9001 Test pressure: ISO5208 Pipe thread: ISO228
Grade	QF-1700
Thread	internal thread

Products Dimensions

DN	SIZE	H	L	B	D
15	1/2"	37	62	15	98
20	3/4"	40.5	70	19	98
25	1"	49.5	79	24	126

Products Advantage

Ball valve

1.Small fluid resistance
2.The closing piece can withstand the high pressure difference at the time of closing.
3.Floating ball makes the opening and closing more flexible.
4.Compact structure, small size, saving installation space.

Packing & Delivery

Quantity (pieces)	≤50000	>50000
Est. Time (Days)	30	To be negotiated

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Certifications

In 2009, Kaibelli introduced advanced Spike spectrum analyzers from Germany for material analysis of raw materials and accessories, and purchased internationally advanced valves, nozzles, hoses, life, flow, hot and cold, and pull Extruded melt index and blasting test machine with 30 standardizers.

Cooperation Case

Beijing Victoria Garden

Xi'an Chang'an University

Shanghai Maritime Building

FAQ

Q: Can you give me a disount?

A: As you know, we are manufactory, so please believe us our price is competitive.

If the quantity is big, we can consider give you a discount.

Q: How about your capacity?

A: As you know, we have 70 employees and have 30 CNC machine tools for quality inspection. So please believe that we can deliver the valve according to your order.
