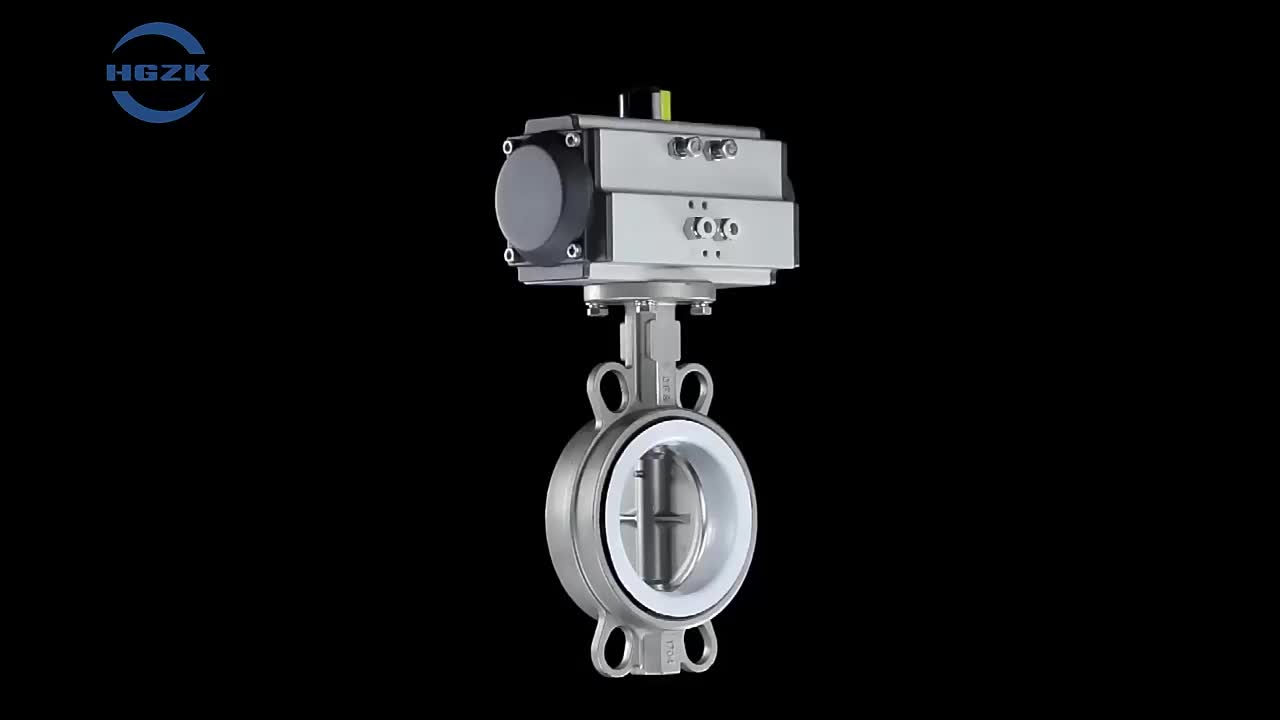

Stain Steel High Performance Wafer Butterfly Valve Manufacturer OEM ODM 5 Inch Pneumatic Actuator Butterfly Valve

About Stain Steel High Performance Wafer Butterfly Valve Manufacturer OEM ODM 5 Inch Pneumatic Actuator Butterfly Valve

Warranty

1 years

Product name

Pneumatic Butterfly Valve

Body Material

CF8/CF8M/Carbon Steel

Delivery

Payment Received

media

Gas

customized support

OEM, ODM

temperature of media

High Temperature, Low Temperature, Medium Temperature, Normal Temperature

Working pressure

PN16,25,40

OEM

Available

End Connection

Wafer,Flanged

Brand Name

HGZK

Place of Origin

Jiangsu, China

Application

General

power

Pneumatic

Model Number

D672F

Port Size

2in-12in

MOQ

1 Pc

Structure

Butterfly

Lined Materia

PTFE/EPDM/FEP/NBR

Testing and Inspecting

GB/T3927 API598

Designed standard

JB/T85927 API609 GB12138

item	value
Warranty	1 years
Type	Butterfly Valves
Customized support	OEM, ODM
Place of Origin	China
	Jiangsu
Brand Name	HGZK
Model Number	D672F
Application	General
Temperature of Media	High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Power	Pneumatic
Media	Gas
Port Size	2in-12in
Structure	BUTTERFLY
Product name	Pneumatic high performance butterfly valve

Bottom connection mode

Bottom installation standard: according to connect standard ISO5211 / VDI / VDE3845

Indicator cover

Judge the valve switch status by the Yellow position on the indicator cover

Set screw

The set screw is used to fine tune the angle of the valve. When the valve is not tightly closed, the screw can be fine tuned to make it tightly closed

Double action

There is no spring inside the double acting pneumatic actuator. When the air source is lost, the cylinder remains in place(FL)

Single action

Single acting internal return spring, reliable spring return without air source, can be made normally closed（FC） or normally open（FO）

1.How to control the pneumatic valve

Controlled by reversing valve, such as solenoid valve and manual reversing valve，

Solenoid valve voltage optional:DC12V,DC24V, AC24V, AC110V, AC220V,AC380V.

2.What accessories are available for pneumatic valves？

Solenoid valve:Use electricity to control the air source, and then control the pneumatic valve switch;

Limit switch:Feedback valve switch status;

Air filter:Filter impurities in air of air source;

Manual device:When the air source is lost, the valve switch can be controlled manually.

3.Difference between double acting and single acting

There is no spring in the double acting cylinder, and the valve remains in place when the air source is lost; There are spring in the single acting cylinder. When the air source is lost, the spring can be used for resetting;

4.What is the life span of your pneumatic actuators?

We have passed 1 million times of product quality test, and obtained the certificate

5.How fast does the pneumatic valve open and close?

Small caliber valve switch for 1s,Large diameter valve switch 1.5s;

6.Can the pneumatic valve control the opening and flow?

Yes, pneumatic valves can be equipped with positioners, usually controlled by 4-20mA electric signals.

7.Do pneumatic valves support customization?

Yes, we can provide you with scheme configuration according to your control needs

8.Can you do OEM for me?

We accept all OEM orders, including pneumatic actuator color, valve material, just contact us and give me your design. We will provide you with a reasonable price and make samples for you as soon as possible.

9.Do you have more valve products？

We produce various valves, such as pneumatic valves, electric valves, control valves, ball valves, butterfly valves, gate valves, globe valves, check valves, etc.

10.Why Us?

Quality assurance: All the products will go through lots of tests carefully before dispatch Competitive production capacity and fast shipping Factory direct sale, most competitive price.
