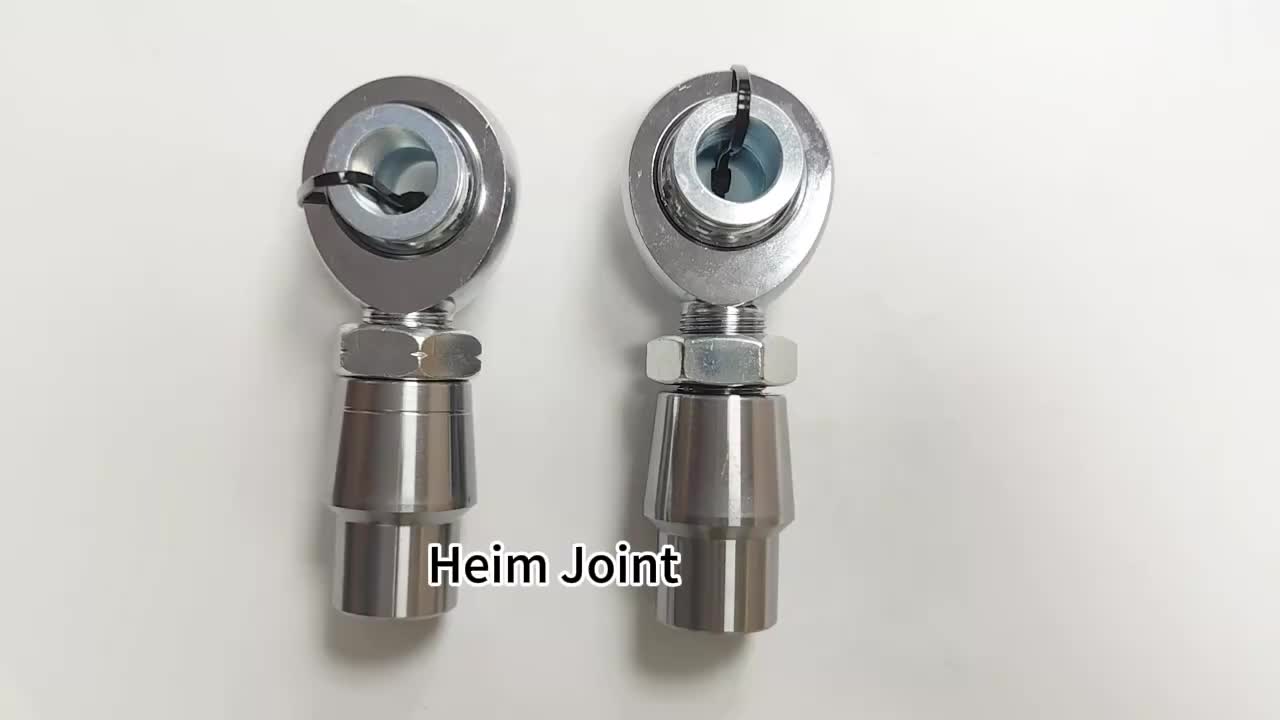

1.25'' Rod End Heim Joint KIT Left and Right Thread 1 1/4'' Chromoly Joints Heim Joints

About 1.25'' Rod End Heim Joint KIT Left and Right Thread 1 1/4'' Chromoly Joints Heim Joints

Product name

Rod End Heim Joints Bearing

Feature

Low friction; low vibration

Body Material

alloy steel

Precision Rating

High Precision

Service

OEM Customized Services

Sample

Available

Outer Diameter

2.75 inch

Quality

100% Tested

Thread Direction

Right / left Hand

Ball Diameter

Ball Material

Chrome Steel, Gcr15 Steel,heat treated

Bore Diameter

1inch (spacer 14mm 16mm 19mm)

Eye Thickness

Brand Name

XCCZC

Place of Origin

Guangdong, China

Material

Chrome Steel, Chrome Steel/GCr15/ Stainless Steel

Application

Offroad, jeep, robot

Package

Plastic Tube+ Box+ Carton

Model Number

1.25'' Rod End Heim Joint

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Engineering hydraulic cylinder

Type

Rod End

Certification

ISO9001, CE, REACH, ROHS

System of Measurement

inch

Products Description

Product name	Heavy duty Chromoly Rod End Heim Joints with Kits 3/8 5/8 3/4 7/8 1-1/4
Material	Chrome Steel/GCr15/ Stainless Steel
Model	1.25 inch Heim Joint
Ball Material	Gcr15 Steel,heat treated
Feature	high load Impact resistance durable self-aligning Well lubricated High precision
Package	Plastic Tube+ Box+ Carton
Service	OEM Customized Services
Certification	ISO9001:2008, CE

* Products and Complete Accessory Tooling: 1 Right-handed thread+1 Left-handed thread Heim kit+2 Tube adapters+ 2 Misaligned spacers+ 2 Locking nuts
* Joint Kit Adaptability and Installation: ①Shaft Specifications: 1 1/4" diameter, 12 TPI (threads per inch), 1"bore,ensuring maximum strength;②Compatible Tube Sizes:1 3/4" outer diameter, 0.120" wall thickness, 1.5" inner diameter；③Mounting Width: 2-5/8"
* 76,000-Pound Load Capacity: These universal joint kits have a static rated load capacity of 76,000 pounds, making them suitable for heavy-duty use
* Heat-treated and Hard Chrome-Plated:They are heat-treated and hard chrome-plated, eliminating the need for grease and extending their lifespan
* Versatile Applications:Suitable for steering and suspension systems, tow bars, tow bar kits, suspension rods, steering joints, Johnny joints, pull rods, and connecting rod joints, these universal joint kits enhance various systems, improving response speed and control during driving

Details Images

Products Real Shot

Application

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is
according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
