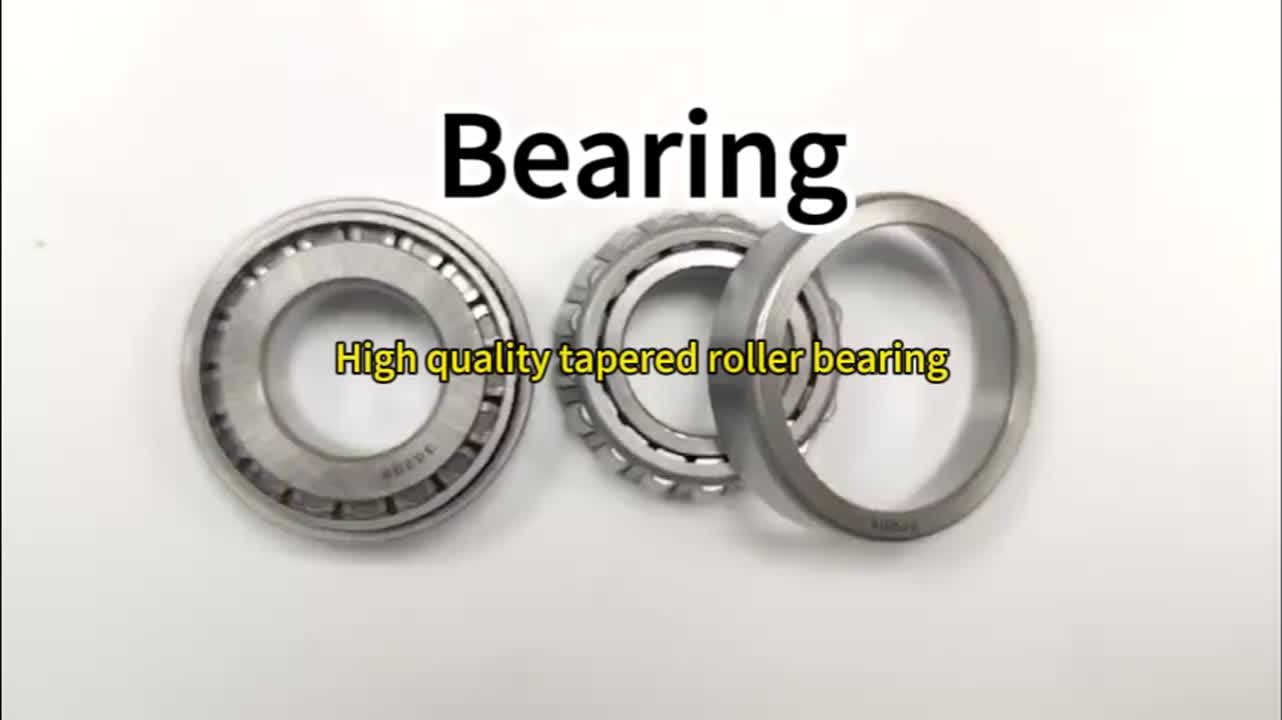

Custom Single Row Tapered Roller Bearings Model 30202 to 30215

About Custom Single Row Tapered Roller Bearings Model 30202 to 30215

Product name

30202 30203 30204 30205 30206 30207 30208 Tapered Roller Beairngs

Feature

Long Life .Durable.Low Noise

Precision Rating

P2 P4 P5 P6 P0

Service

OEM ODM

Cage

Steel Cage

Outer Diameter

35 mm

Inner Diameter

15 mm

Quality

100% Tested

Sealing type

Open

Brand Name

XCCZC

Place of Origin

Guangdong, China

Material

Chrome Steel, Chrome Steel GCr15

delivery time

7-30 Days

Model Number

30202

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Manufacturing Plant, Construction works , Energy & Mining

Type

Roller

Size

Standard size

Structure

Taper

Certification

ISO,REACH,ROHS

System of Measurement

Metric

Speed

10000RPM

Number of Row

Single Row

Products Description

Product name	High Speed Single Row Tapered Roller Bearings
Model Number	30202
Precision Rating	P6
Size	153512 mm
Material	Chrome Steel GCr15
Feature	High Load,Low Friction,High Precision
Service	OEM ODM
Application	Automotive.tractor.construction Machinery.rolling Mill

* Structural Features: Both inner and outer rings feature tapered raceways, with truncated cone-shaped rolling elements. The inner ring, outer ring, rolling elements, and cage collectively form a complete, separable assembly.
* Load-bearing capacity: Capable of simultaneously withstanding radial loads and unidirectional axial loads. Axial load capacity increases with contact angle; a larger contact angle makes it suitable for applications where axial loads constitute a higher proportion.
* Applicable Conditions: Commonly used in machinery subjected to combined loads, such as automotive hubs, axles, and gearboxes, as well as machine tool spindles and mining equipment. Particularly suitable for low-to-medium speed applications involving impact or vibration.
* Installation Requirements: Adjust the clearance during installation (achieved through relative axial displacement between the inner and outer rings). Excessive clearance may cause vibration and noise, while insufficient clearance may accelerate wear due to increased heat generation. A suitable locking device must be used in conjunction.
* Performance Limitations: Cannot withstand bidirectional axial loads. For bidirectional load-bearing requirements, must be installed in pairs with opposing directions.

* Enhanced Durability: By adopting a tapered roller design, the bearings achieve reduced friction and wear during rolling, ultimately improving lifespan and performance while lowering maintenance costs.

* Application: 30202 Tapered Roller Bearings are used in a range of applications from Agricultural Machinery to Conveying Equipment, Electric Motors, Trucks, Mining Equipment, Robotics, Dental Equipment, Gear Drives, Elevators, Rolling Mills, Ship Rudder Shafts, Aggregate Crushers, among others.

Item Code	Dimensions(mm)					Load Ratings(KN)			Limiting Speed(rpm)	Weight (kg)
Item Code	Code	d	D	T	Cr	Cor	Grease	Oil		Weight (kg)
30202	15	35	11.75	17	16	9000	13000	0.05
30203	17	40	13.25	20.7	21.9	9000	13000	0.074
30204	20	47	15.25	28.2	30.6	8000	11000	0.12
30205	25	52	16.25	32.2	37.0	7500	10000	0.15
30206	30	62	17.25	43.3	50.5	6300	8500	0.232
30207	35	72	18.25	54.2	63.5	5300	7000	0.32
30208	40	80	19.75	63.0	74.0	4800	6300	0.42
30209	45	85	20.75	67.9	83.6	4500	6000	0.474
30210	50	90	21.75	73.3	92.1	4300	5600	0.54
30211	55	100	22.75	90.8	113.7	3800	5000	0.709
30212	60	110	23.75	103.3	130.0	3400	4500	0.88
30302	15	42	14.25	22.09	21.6	9000	13000	0.095
30303	17	47	15.25	28.3	27.2	8500	12000	0.13
30304	20	52	16.25	33.1	33.2	8000	11000	0.17
30305	25	62	18.25	46.9	48.1	6700	9000	0.26
30306	30	72	20.75	59.0	63.1	5600	7500	0.387
30307	35	80	22.75	75.3	82.6	5000	6700	0.527
30308	40	90	25.25	90.9	107.6	4500	6000	0.72
30309	45	100	27.25	108.9	129.8	4000	5300	1.01
30310	50	110	29.25	130.1	157.1	3600	4800	1.31
32004	20	42	15	25.1	28.2	9000	12000	0.097
32005	25	47	15	28.0	34.1	8000	11000	0.11
32006	30	55	17	35.7	46.8	6700	9000	0.17
32007	35	62	18	43.2	59.2	6000	8000	0.22
32008	40	68	19	51.9	71.1	5300	7000	0.287
32009	45	75	20	58.4	81.4	4800	6300	0.34
32010	50	80	20	61.1	89.0	4500	6000	0.37
32011	55	90	23	80.2	117.2	4000	5300	0.551
32012	60	95	23	81.7	122.2	3800	5000	0.584
32204	20	47	19.25	34.4	36.4	8000	11000	0.157
32205	25	52	19.25	43.0	48.7	7500	10000	0.174
32206	30	62	21.25	51.8	63.7	6300	8500	0.273
32207	35	72	24.25	70.6	89.5	5300	7000	0.426
32208	40	80	24.75	77.9	97.2	4800	6300	0.53
32209	45	85	24.75	80.7	104.0	4500	6000	0.607
32210	50	90	24.75	82.8	107.6	4300	5600	0.648
32211	55	100	26.75	108.0	142.3	3800	5000	0.853
32212	60	110	29.75	132.8	179.6	3500	4700	1.17
32303	17	47	20.25	35.3	36.3	8000	11000	0.173
32304	20	52	22.25	42.7	46.3	7500	10000	0.230
32305	25	62	25.25	61.6	68.8	6000	8000	0.366
32306	30	72	28.75	81.6	96.4	5300	7000	0.550
32307	35	80	32.75	99.0	118.3	4800	6300	0.73
32308	40	90	35.25	115.7	147.8	4000	5300	1.10
33205	25	52	22	50.2	59	6700	10000	0.219
33206	30	62	25	63.8	75.4	5600	7500	0.342
33207	35	72	28	82.6	101.7	4800	6300	0.54
33208	40	80	32	105.8	135.5	4800	6300	0.75
33110	50	85	26	89.3	124.1	4300	5600	0.572
33113	65	110	34	142	219	3200	4400	1.3
30303D	17	47	15.25	24	21.3	8000	11000	0.15
30308D	40	90	25.25	81	90.9	4000	5300	0.742
ST4090	40	90	25	81	90.3	4000	5300	0.693
31305	25	62	18.25	42.7	46.2	5600	7500	0.264
31306J	30	72	20.75	50	56.6	5000	6700	0.392
320/22	22	44	15	26.1	30.3	8000	10000	0.103
320/28	28	52	16	31.4	40.4	6700	8500	0.142
320/32	32	58	17	36.5	49.2	6000	7500	0.187
322/32	32	65	22.25	46.9	52.9	6000	8000	0.100
32907JR	35	55	14	25.6	35.4	6300	8400	0.119
