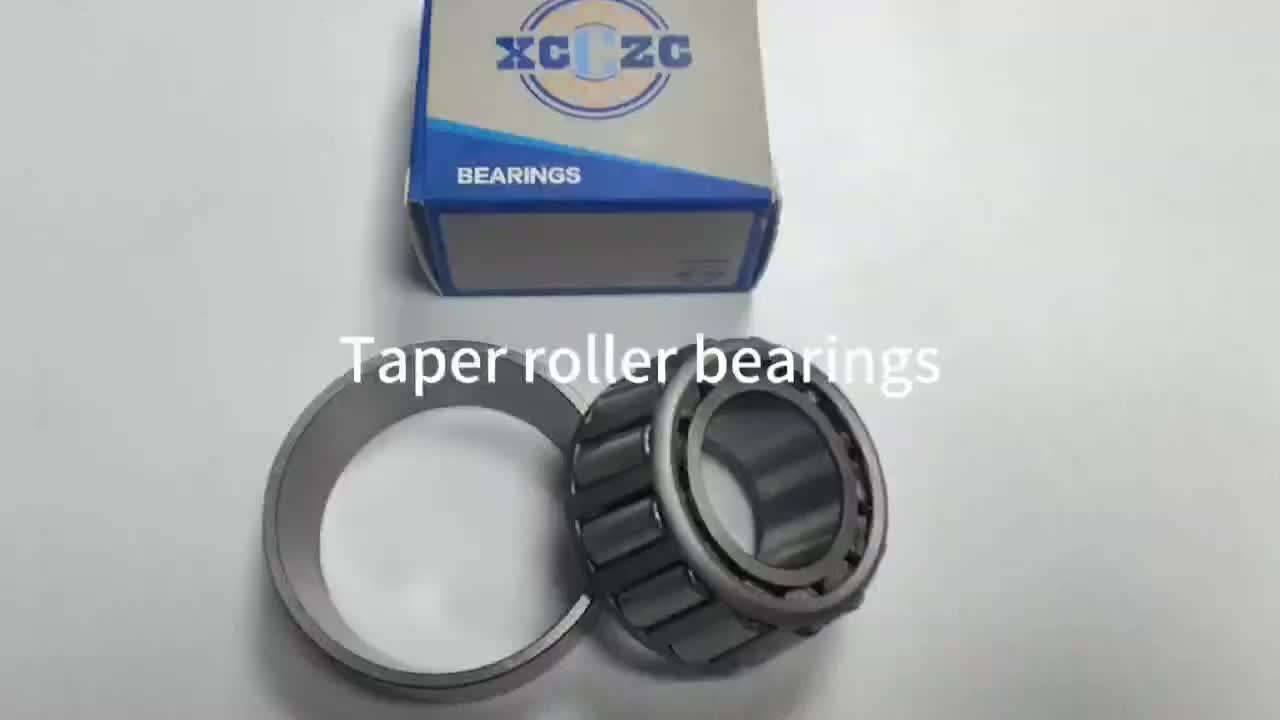

Double Row Taper Roller Bearings 32004-32018 P6 Precision Rating Chrome Steel Taper Roller Bearing

About Double Row Taper Roller Bearings 32004-32018 P6 Precision Rating Chrome Steel Taper Roller Bearing

Product name

Tapered Roller Beairngs

Precision Rating

P2 P4 P5 P6 P0, P6

Service

OEM ODM

Cage

Steel Cage

Sealing type

Open

Brand Name

XCCZC

Place of Origin

Guangdong, China

Material

Chrome Steel, Chrome Steel GCr15

Model Number

32005, 32005

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Manufacturing Plant, Construction works , Energy & Mining

Type

Roller, Roller

Size

25*47*15 mm

Structure

Taper

System of Measurement

Metric

Speed

10000RPM

Number of Row

Double Row

Seals Type

open

Products Description

Model Number	32005,32005X
Precision Rating	P6
Seals Type	open
Product name	Tapered Roller Beairngs
Size	254715 mm
Material	Chrome Steel GCr15
Service	OEM ODM
Application	Automotive.tractor.construction Machinery.rolling Mill

1. Combined Load Capacity
Tapered roller bearings are designed to handle both radial and axial loads simultaneously. This dual load capacity simplifies mechanical systems and contributes to overall compactness and efficiency.
2. High Load-Carrying Capacity
The tapered design increases the contact angle between the rollers and the raceways, enabling the bearing to support higher forces without deforming. This makes them ideal for heavy-duty applications.
3. Enhanced Durability
These bearings are built to endure tough operating conditions, including high loads, vibrations, and temperature fluctuations. Their robust construction ensures long service life and minimal downtime.
4. Reduced Friction and Heat Generation
Tapered roller bearings are engineered to minimize friction and heat generation, which enhances overall performance and reduces maintenance costs.
5. Improved Load Distribution
The unique geometry of the tapered rollers ensures even load distribution across the bearing surfaces, reducing stress concentrations and wear.
6. Adjustable Preload
The separable design of tapered roller bearings allows for easy adjustment of bearing clearance during installation, ensuring optimal performance under different operating conditions.
7. High Precision and Reliability
Tapered roller bearings provide high rotational accuracy and stiffness, which is crucial for maintaining tight tolerances in precision equipment.
8. Versatile Applications
These bearings are widely used in automotive wheel hubs, transmissions, gearboxes, heavy machinery, wind turbines, and other industrial applications where combined loads are prevalent.
9. Customizable Solutions
Tapered roller bearings can be customized to match specific speed, load, contamination, temperature, or vibration conditions, ensuring optimal performance in diverse applications.
10. Low Maintenance
Tapered roller bearings require minimal maintenance and can operate reliably for extended periods, reducing overall operational costs.

Product Display

Item Code	Dimensions(mm)					Load Ratings(KN)			Limiting Speed(rpm)	Weight (kg)
Item Code	Code	d	D	T	Cr	Cor	Grease	Oil		Weight (kg)
30202	15	35	11.75	17	16	9000	13000	0.05
30203	17	40	13.25	20.7	21.9	9000	13000	0.074
30204	20	47	15.25	28.2	30.6	8000	11000	0.12
30205	25	52	16.25	32.2	37.0	7500	10000	0.15
30206	30	62	17.25	43.3	50.5	6300	8500	0.232
30207	35	72	18.25	54.2	63.5	5300	7000	0.32
30208	40	80	19.75	63.0	74.0	4800	6300	0.42
30209	45	85	20.75	67.9	83.6	4500	6000	0.474
30210	50	90	21.75	73.3	92.1	4300	5600	0.54
30211	55	100	22.75	90.8	113.7	3800	5000	0.709
30212	60	110	23.75	103.3	130.0	3400	4500	0.88
30302	15	42	14.25	22.09	21.6	9000	13000	0.095
30303	17	47	15.25	28.3	27.2	8500	12000	0.13
30304	20	52	16.25	33.1	33.2	8000	11000	0.17
30305	25	62	18.25	46.9	48.1	6700	9000	0.26
30306	30	72	20.75	59.0	63.1	5600	7500	0.387
30307	35	80	22.75	75.3	82.6	5000	6700	0.527
30308	40	90	25.25	90.9	107.6	4500	6000	0.72
30309	45	100	27.25	108.9	129.8	4000	5300	1.01
30310	50	110	29.25	130.1	157.1	3600	4800	1.31
32004	20	42	15	25.1	28.2	9000	12000	0.097
32005	25	47	15	28.0	34.1	8000	11000	0.11
32006	30	55	17	35.7	46.8	6700	9000	0.17
32007	35	62	18	43.2	59.2	6000	8000	0.22
32008	40	68	19	51.9	71.1	5300	7000	0.287
32009	45	75	20	58.4	81.4	4800	6300	0.34
32010	50	80	20	61.1	89.0	4500	6000	0.37
32011	55	90	23	80.2	117.2	4000	5300	0.551
32012	60	95	23	81.7	122.2	3800	5000	0.584
32204	20	47	19.25	34.4	36.4	8000	11000	0.157
32205	25	52	19.25	43.0	48.7	7500	10000	0.174
32206	30	62	21.25	51.8	63.7	6300	8500	0.273
32207	35	72	24.25	70.6	89.5	5300	7000	0.426
32208	40	80	24.75	77.9	97.2	4800	6300	0.53
32209	45	85	24.75	80.7	104.0	4500	6000	0.607
32210	50	90	24.75	82.8	107.6	4300	5600	0.648
32211	55	100	26.75	108.0	142.3	3800	5000	0.853
32212	60	110	29.75	132.8	179.6	3500	4700	1.17
32303	17	47	20.25	35.3	36.3	8000	11000	0.173
32304	20	52	22.25	42.7	46.3	7500	10000	0.230
32305	25	62	25.25	61.6	68.8	6000	8000	0.366
32306	30	72	28.75	81.6	96.4	5300	7000	0.550
32307	35	80	32.75	99.0	118.3	4800	6300	0.73
32308	40	90	35.25	115.7	147.8	4000	5300	1.10
33205	25	52	22	50.2	59	6700	10000	0.219
33206	30	62	25	63.8	75.4	5600	7500	0.342
33207	35	72	28	82.6	101.7	4800	6300	0.54
33208	40	80	32	105.8	135.5	4800	6300	0.75
33110	50	85	26	89.3	124.1	4300	5600	0.572
33113	65	110	34	142	219	3200	4400	1.3
30303D	17	47	15.25	24	21.3	8000	11000	0.15
30308D	40	90	25.25	81	90.9	4000	5300	0.742
ST4090	40	90	25	81	90.3	4000	5300	0.693
31305	25	62	18.25	42.7	46.2	5600	7500	0.264
31306J	30	72	20.75	50	56.6	5000	6700	0.392
320/22	22	44	15	26.1	30.3	8000	10000	0.103
320/28	28	52	16	31.4	40.4	6700	8500	0.142
320/32	32	58	17	36.5	49.2	6000	7500	0.187
322/32	32	65	22.25	46.9	52.9	6000	8000	0.100
32907JR	35	55	14	25.6	35.4	6300	8400	0.119
