Min. order:: --
Product Info
Category: Industrial Valves
Factory
1. Nominal pressure: 1.6Mpa
2. Working medium: hot and cold water
3.Temperature: -20℃≤T≤100℃
4. Standard: Test pressure meets ISO5208 standard
Pipe thread conforms to ISO228 standard
5. Certification: ISO9001
|
Product Name
|

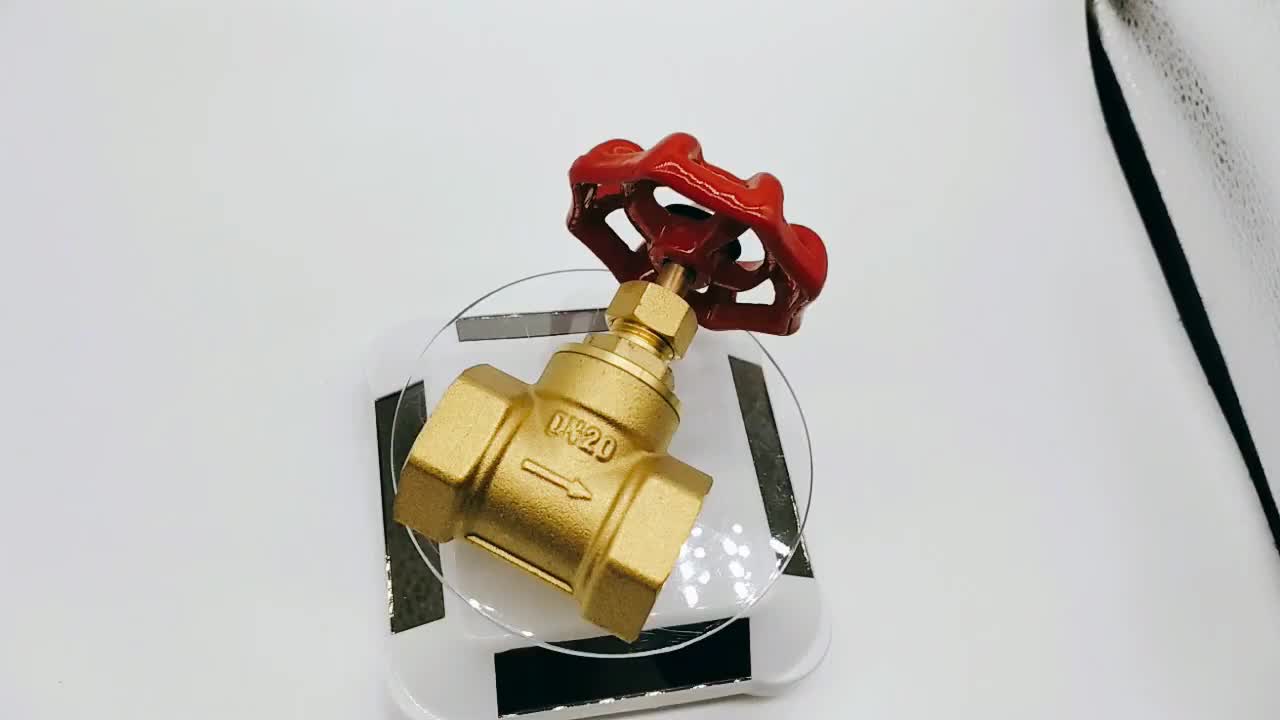

DN15-DN20 pressure 1.6Mpa brass Light duty stop valve 2 inch
|
|
Material
|
brass 59-1 57-3
|
|
Color
|
Brass paint
|
|
Standard
|
ISO9001 Test pressure:ISO5208 Pipe thread: ISO228
|
|
Thread
|
Female Thread
|
1.Easy to adjust with pressure cap structure
2.The valve body and the valve cover are sealed by gaskets, which is easy to disassemble and maintain.
3.The valve stem and the valve plate are connected by a trapezoidal double-head thread, which makes the valve plate lift faster and faster.
|
DN
|
SIZE
|
H
|
L
|
B
|
D
|
|
15
|
1/2"
|
61.5
|
44
|
13.5
|
53.5
|
|
20
|
3/4"
|
68
|
54
|
18
|
53.5
|
|
25
|
1"
|
78
|
60.5
|
21
|
58
|
|
32
|
11/4"
|
95
|
72
|
27
|
76
|
|
40
|
11/2"
|
104
|
74
|
32
|
76
|
|
50
|
2"
|
110
|
94
|
40
|
105
|
|
Quantity (pieces)
|
≤50000
|
>50000
|
|
Est. Time (Days)
|
30
|
To be negotiated
|
In 2009, Kaibelli introduced advanced Spike spectrum analyzers from Germany for material analysis of raw materials and accessories, and purchased internationally advanced valves, nozzles, hoses, life, flow, hot and cold, and pull Extruded melt index and blasting test machine with 30 standardizers
A: As you know, we are manufactory, so please believe us our price is competitive.
If the quantity is big, we can consider give you a discount.
A: As you know, we have 70 employees and have 30 CNC machine tools for quality inspection. So please believe that we can deliver the valve according to your order.
A: We will be responsible for all quality issues
