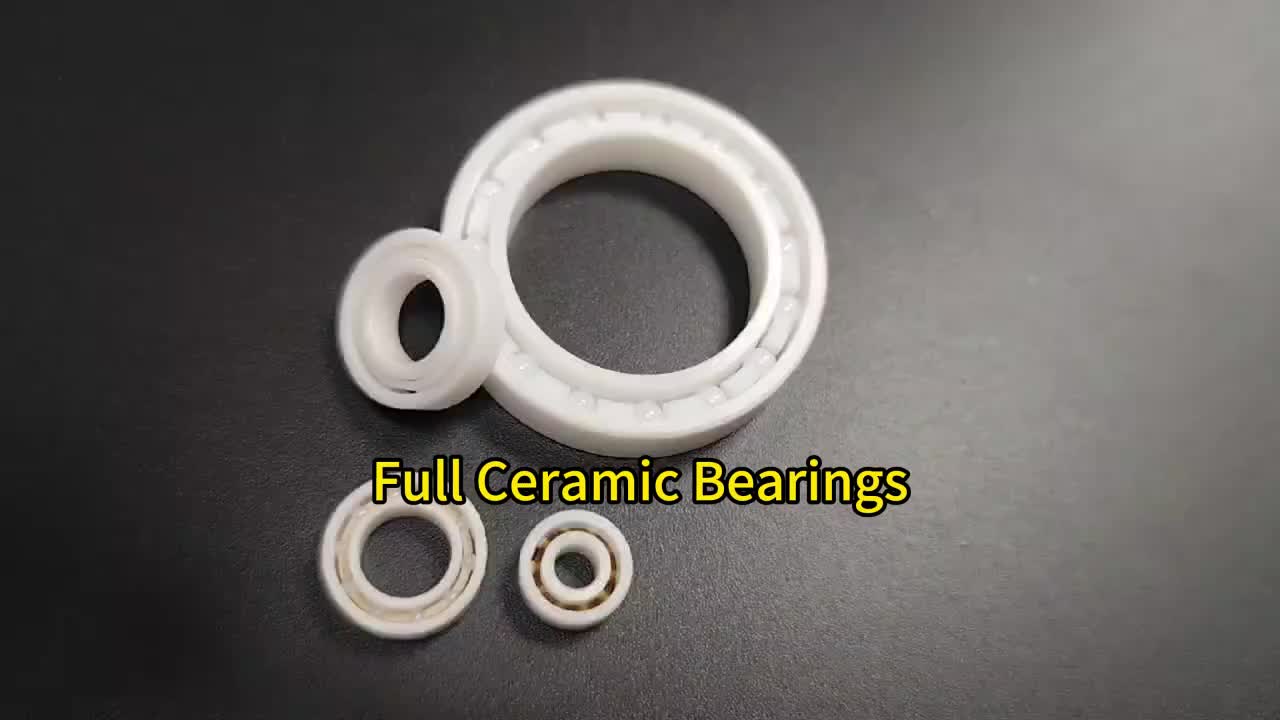

High Temperature Miniature Ball Bearing 603-609 Single Row with Open Seals Deep Groove High Speed Full Ceramic Peek Cage

About High Temperature Miniature Ball Bearing 603-609 Single Row with Open Seals Deep Groove High Speed Full Ceramic Peek Cage



Inside Ø (mm):	5
Outside Ø (mm):	14
Width (mm):	5
max. Operating Temperature:	+250°C
min. Operating Temperature:	-70°C
Extended Inner Ring:	no
Tolerance Class:	ABEC 1 / P0
Internal Clearance:	C3 (increased clearance)
Seal:	open
Ring Material:	Ceramics
Rolling Element Material:	Ceramics
Cage Material:	PEEK
Application:	Extreme temperatures
Item weight:	4 g

Features
* extremely durable by high hardness and corrosion resistance
* extremely high surface quality by greater rigidity
* better emergency running characteristics compared to steel ball bearings
* low tare weight, circa 40% lighter than bearings made of rolling bearing steel
* suitable for high-temperature applications
* suitable for dry run
* current-insulating, low thermical conductivity
* non-magnetic
* extremely corrosion resistant
* extremely resistant to chemicals
* suitable for foodstuff-applications



Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is
according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
