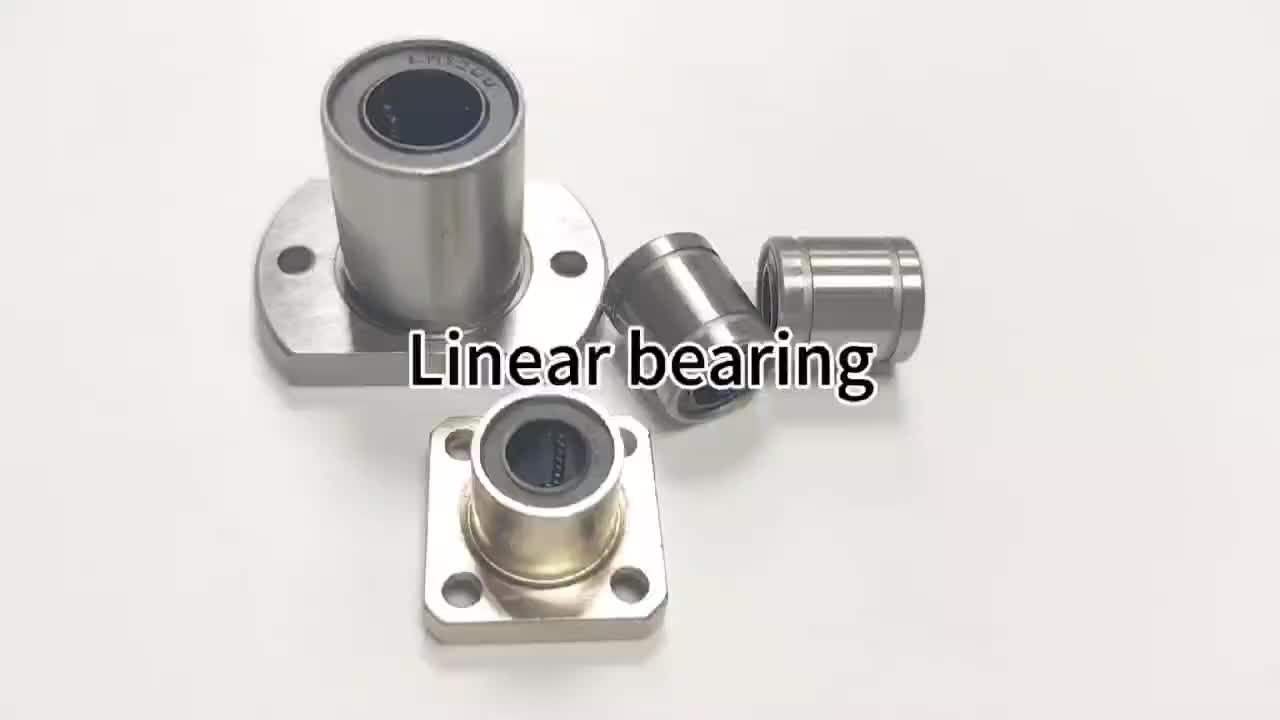

Small LM6UU Linear Motion Rail Slider Bearing 6*12*19 mm Drive Shaft High Performance Linear Bearings | Shenzhen Xinchangsheng Bearing Co., Ltd.

About Small LM6UU Linear Motion Rail Slider Bearing 6*12*19 mm Drive Shaft High Performance Linear Bearings

Feature

Smooth Motion, Long Life, Low Noise

Keyword

LM6UU drive shaft bearing linear motion rail slider bearing

Precision Rating

P0 P6 P2 P5 P4

Lubrication

Grease

Static Load Capacity

500 N

Width

19 mm

Product's name

LM6UU drive shaft bearing linear motion rail slider bearing

Service

OEM Customized Services

Shaft Diameter

6 mm

Basic Dynamic Load

200

bearing type

Linear Motion Bearing

Outer Diameter

12 mm

Inner Diameter

6 mm

Sample

Available

Brand Name

OEM

Place of Origin

Guangdong, China

Material

Chrome Steel, Chrome Steel,Gcr15,stainless steel

Application

Machinery

Quality

100% Tested

Applicable Industries

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Energy & Mining, Mechanical Parts

Certificate

ISO9001:2008

Size

6*12*19 mm

System of Measurement

Metric

Linear bearings are bearing elements for translation type motion. As in the case of rotary bearings, a distinction is drawn as to whether the forces occurring are transmitted by means of rolling or sliding elements. Each linear design has particular characteristics that make it especially suitable for particular bearing arrangements.
Linear Bearing Features
1. enable high precision linear motion on round shafts
2. sustain heavy loads with low noise and high stiffness
3. perform under almost any environmental conditions and load capacities to satisfy a wide range applications

Product Name	Supply linear bearing LM6UU drive shaft bearing 6 * 12 * 19 linear motion rail slider bearing
Material	Chrome steel / Stainless steel
Tolerance Rating	ABEC-1,ABEC-3,ABEC-5
Product Application	1) Linear Bearing widely used in many precision equipment,like electronic equipment, tension tester and digital 3d coordinate measurement equipment etc. 2) Linear Bearing widely used in many machines,like multi-axis machine, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, ShiPinBao installed the sliding parts such as industrial machinery 3)Suitable for Countless Applications: Sliding Doors, Windows and Other Furnitures,etc.
Product advantage	1) Low-cost and high loads linear motion system 2) High friction resistance of Linear Bearing can get high precision rotating in the smooth movement 3) With Carbon Steel Ball Bearing 4)With a High Load-Bearing Capacity 5)More Quietly than Metal Bearings 6)Low Noise, Stable Performance and Durable 7)Able to Work in Sub-Zero Temperatures and Have Low Rolling Resistance

"LM" metric standard type linear bearing
"LME" inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
KH: High-precision mini bearing

Bearing Type	Ball	Weight	Inner size(dr)	Outer size(D)	Length(L)
LM6UU	4 rows	8g	6mm	12mm	19mm
LM8UU	4 rows	16g	8mm	15mm	24mm
LM10UU	4 rows	30g	10mm	19mm	29mm
LM12UU	5 rows	31.5g	12mm	21mm	30mm
LM13UU	5 rows	43g	13mm	23mm	32mm
LM16UU	5 rows	69g	16mm	28mm	37mm
LM20UU	5 rows	87g	20mm	32mm	42mm
LM25UU	6 rows	220g	25mm	40mm	59mm
LM30UU	6 rows	250g	30mm	45mm	64mm
LM35UU	6 rows	390g	35mm	52mm	70mm
LM40UU	6 rows	585g	40mm	60mm	80mm
LM50UU	6 rows	1580g	50mm	80mm	100mm
LM60UU	6 rows	2000g	60mm	90mm	110mm
LM80UU	6 rows	4420g	80mm	120mm	140mm
